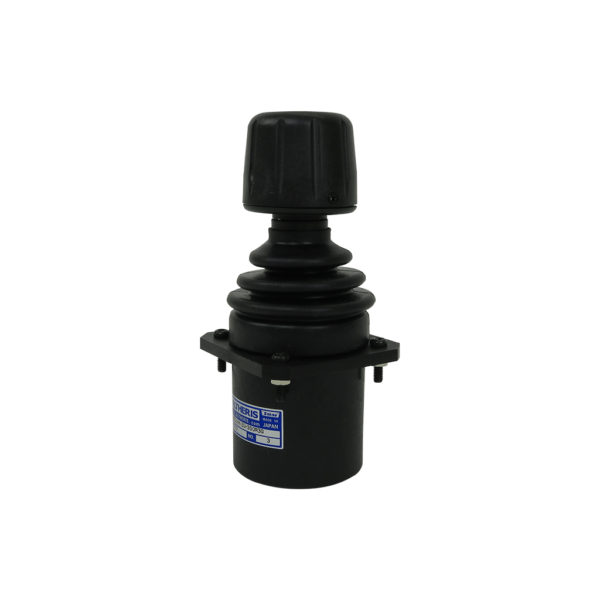

Miniature joystick
€150,00
Availability: 5 in stock
Low cost version of 3-dimensional coordinate type joystick controller incorporated a hall effect IC type resistive element. It offers high-protection and several special outputs.
The hall effect IC type resistive elements incorporated:
– Applied voltage: 5V±10% D.C.
– Effective output: Approx.0.5V~4.5V
– Electrical rotating angle: X and Y-axis: Approx.±20°
Z-axis: Approx.±30°
– Independent linearity tolerance: ±3%
– Load resistance: over 10KΩ
| Weight | 0,13 kg |
|---|---|
| Controlling Range (X and Y) | X and Y directions: ±17.5°~±22.5° from center position. |
| Controlling Range (Z Direction) | ±27.5°~±32.5° from center position. |
| Operating Force | Standard spring return device: Automatically return to center |
| Operating Force (X and Y) | Approx.1~4N (100~400gf) |
| Operating Temperature Range | -20°C~+60°C |
| Vibration | 10~55Hz 98m/s2 |
| Shock | 294m/s2 |
| Life Expectancy | X and Y directions: Approx. 5,000,000 operations, Z direction: Approx. 3,000,000 operations |
| Mass | Approx. 110g |
| Dielectric Strength | 1 minute at 500 V.A.C. |
| Insulation Resistance | Over 1,000MΩ at 500 V.D.C. |
| EMC Durability | 100 V/m |
